DESCRIPTION
| Filtration Area: |
1.35 sq. ft. |
| Flow Rating: |
35 GPM |
| Plumbing Size: |
1 1/2 in. |
| Sand: |
175 lbs. |
| Filter Diamenter: |
19 in. |
| Pipe Size: |
1 1/2 in. |
| Max PSI: |
50 PSI |
| Valve Type: |
Multiport |
| Warranty: |
1 year (s) |
Same Quality as Hayward, Pentair, Sta-Rite, Jandy, Jacuzzi & Waterway!
Our high performance, totally corrosion proof 16″ sand filter has a blend of superior flow characteristics and ease of operation. Efficient flow and totally balanced back washing makes this sand filter a great choice for your swimming pool.
Application
- Swimming pools of all types and sizes
- In-ground spas (residential or commercial)
- Water features (fish ponds, fountains, water gardens)
Features
- Flange clamp design allows 360° rotation for easy installation.
- Top diffuser ensures even distribution of water over the top of the sand media bed.
- All internal piping is 1.5” (Dia: 50mm) to give smooth, free-flowing performance
- HDPE molded tank for long life
- Bottom drain for easy winterization or servicing

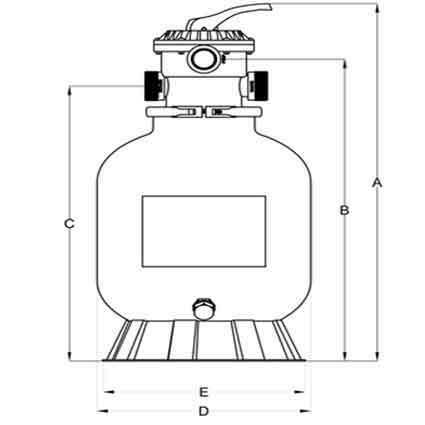

DIMENSION
| Dimension A: |
36.6 in. |
| Dimension B: |
31.7 in. |
| Dimension C: |
29.3 in. |
| Dimension D: |
19 in. |
| Dimension E: |
18.9 in. |
| Model |
Sand Capacity |
| 16″ |
110 Lbs. |
| 19″ |
175 Lbs. |
| 22″ |
220 Lbs. |
| 24″ |
300 Lbs |
REPLACEMENT PARTS
|
Key
|
Part #
|
Mfg Code
|
Item
|
|
1
|
4802-01CP
|
PL0714
|
Top Mount Flanged Valve Praher
|
|
2*
|
OBSOLETE
|
94085172-R
|
OBSOLETE REPLACEMENT TANK SS240
|
|
2*
|
OBSOLETE
|
94085623-R
|
OBSOLETE REPLACEMENT TANK SS185
|
|
2*
|
OBSOLETE
|
94085745-R
|
OBSOLETE REPLACEMENT TANK SS160
|
|
3
|
REPLACE
|
42353107-R
|
No Longer Available STANDPIPE Replace With 4639-051
|
|
3
|
REPLACE
|
42354208-R
|
No Longer Available STANDPIPE ASSY Replace With 4639-050
|
|
3
|
REPLACE
|
42369603-R
|
No Longer Available STANDPIPE Replace With 4639-052
|
|
3
|
4639-050
|
42388207R
|
SNAPFIT SS160 STANDPIPE With LATERALS (42388207R000)
|
|
3
|
4639-051
|
42388306R
|
SNAPFIT SS185 STANDPIPE With LATERALS (42388306R000)
|
|
3
|
4639-052
|
42388405R
|
SNAPFIT SS240 STANDPIPE ONLY
|
|
4**
|
REPLACE
|
85532000-R
|
Replace LATERALS (EACH) Replace With 4626-11
|
|
4**
|
REPLACE
|
85532109-R
|
Replace LATERALS (EACH) Replace With 4626-11A
|
|
5
|
4626-16
|
85826300R
|
CAP, DRAIN WITH GASKET (85826300R000)
|
|
6
|
4639-011
|
12112108R
|
FILTER BASE (12112108R000)
|
|
7
|
4626-06
|
22363907R
|
FILL SPOUT (22552202R000)
|
|
8
|
4626-54
|
85813902R
|
V-BAND CLAMP (85813902R000)
|
|
9
|
4727-0
|
102D-204D
|
Back Mount Pressure Gauge 0-60 1/4″ NPT REAR/BACK
|
|
10
|
4626-53
|
47617204R
|
O-RING, SANDSTORM (47617204R000)
|
|
11
|
OBSOLETE
|
12112207-R
|
OBSOLETE PUMP ADD ON BASE
|
|
12
|
OBSOLETE
|
14433908-R
|
OBSOLETE PUMP MOUNTING SCREWS
|
|
13
|
4639-005
|
31159007R
|
ADAPTOR 1-1/2″MPT X 1-1/2″ BARB (31159007R000)
|
|
14
|
6660-0
|
276-28
|
CLAMP,S.S.HOSE 1 5/16 TO 2IN
|
|
15
|
4625-30
|
31162407R
|
HOSE, 1.5″X 24″ LONG (31162407R000)
|
|
15
|
4625-45
|
Â
|
HOSE, 1.5″ X 30″ (31150029R000)
|
